How Does a Marker Ball Work? Passive EMS Markers Explained
By Victor / Mocbo Blog Article Focus: how does a marker ball work
Summary: Mocbo’s passive EMS marker balls — including the Mocbo MB22 — use a self-leveling coil and a tuned resonant circuit to reflect a locator’s signal at a specific frequency, such as 101.4 kHz for telephone/communication. No battery, no chip, and rated for ~50 years underground. This technical explainer covers passive EMS markers and how they enable reliable underground utility locating.
In our guide to what a marker ball is, we covered the basics. Here we go one level deeper: how does a buried plastic sphere actually tell a locator where the line is — with no battery and no chip?
The answer is simple electromagnetics, done well. This is the technical explainer for contractors, locators, and specifiers.
The Core Idea: A Tuned Resonant Circuit
A standard passive marker ball contains a small tuned resonant circuit — a coil and capacitor selected to resonate at one specific EMS frequency (for example, 101.4 kHz for telephone/communication). There is no transmitter and no battery. The marker is silent until a locator wakes it up.
Step by Step: How Detection Happens

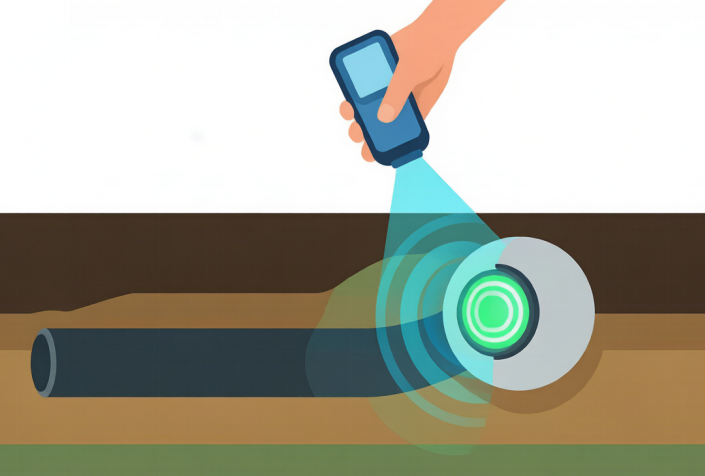

- The locator transmits. Your locator (e.g., a 3M™ Dynatel™ or compatible unit) emits a low-frequency electromagnetic field at the target EMS frequency.
- The marker resonates. The buried ball's tuned coil absorbs that energy and resonates, re-radiating a faint, frequency-specific signal.
- The locator receives. The locator's antenna picks up the return signal and confirms the frequency — which maps to a utility type via the APWA color code.
- Position + depth. By measuring signal strength and phase, the locator shows the horizontal position and an estimated depth of the marker.
The whole exchange takes seconds and works through typical pavement, soil, and asphalt.
Why a Self-Leveling Coil Matters
A marker only reads well if its coil is oriented toward the locator's antenna. That is why quality markers — including the Mocbo MB22 — use a self-leveling coil suspended in a water-glycol fill. The liquid lets the coil settle to the optimal orientation no matter how the ball lands in the trench, giving consistent, reliable detection.
A fixed coil that lands sideways loses signal. A self-leveling coil finds its stance every time.
Can It Be Detected Through Asphalt or Concrete?
Yes. Electromagnetic signals pass through pavement and soil; the main limits are depth and material conductivity, not the surface above. Locators routinely find buried markers under roads and sidewalks. Very deep or heavily shielded assets need the right frequency and a capable locator — but the marker itself is not the bottleneck.
Why Passive (No Battery) Is a Feature, Not a Limitation
- Decades of life. With no battery to fail, a sealed passive marker is rated to ~50 years underground.
- Zero maintenance. Bury it and forget it.
- Lower cost. No electronics to power means the highest-volume, most cost-sensitive configuration — exactly what distributors want.
- Tuned to standard EMS frequencies (including 101.4 kHz telephone)
- Self-leveling coil in a stable water-glycol fill
- IP68 sealed against water and soil
- ~50-year design life, battery-free
- ISO 9001 / 45001 / 14001 certified production
This is why passive, non-ID markers make up the largest segment of the EMS marker market, with programmable/iD markers as the premium, data-carrying upgrade.
Mocbo MB22 — How It Is Built
Frequently Asked Questions
Q: Do marker balls need a power source?
A: No. Passive marker balls have no battery; they reflect energy from the locator's field, which is why they last decades.
Q: How deep can a locator detect a marker ball?
A: It depends on the locator, frequency, and soil — but standard markers are routinely detected at several feet, including under pavement. Check your locator's published depth specification.
Q: What is inside a marker ball?
A: A passive version contains a tuned resonant coil and capacitor, often suspended in a self-leveling fill, sealed in an IP68 shell. No battery, no chip.
Q: Will it interfere with other markers nearby?
A: Each marker resonates at its own frequency, so a locator set to one frequency reads only matching markers. Using the correct frequency per utility avoids confusion.
